Multi Modular P2.6 Stage Rental LED Display Screen Carbon Fiber Structure

Product Categories
Lemass Optoelectronic Co., Ltd.
Contact Now

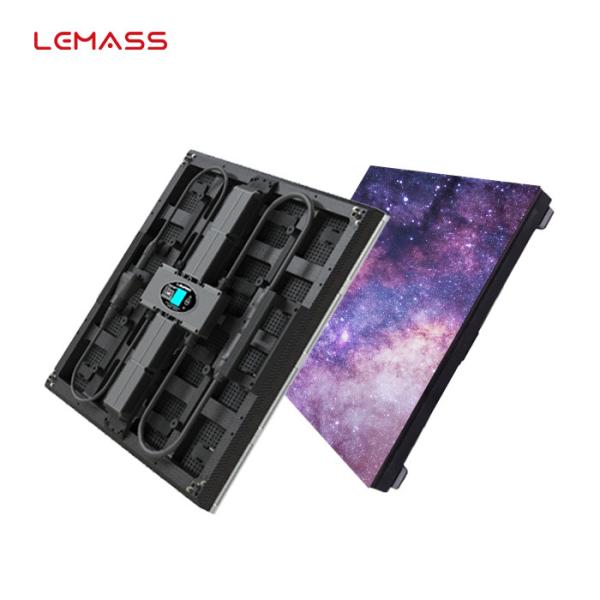

Multi Modular P2.6 Stage Rental LED Display Screen Carbon Fiber Structure

  • 1
  • 2

Brand Name : Lemass

Model Number : P2.6 stage lighting rental LED display

Certification : RoHS, FCC, CE, CNAS, BIS, SGS

Place of Origin : China

MOQ : 1 pc

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10KK pixels/month

Delivery Time : 7-15 days

Packaging Details : Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg

Name : P2.6 stage lighting rental LED display

Size : 500×500mm

Pixel Pitch : 2.6mm

Resolution : 192x192

features : carbon fiber structure

Brightness : 500cd/sqm

Lamp Type : SMD1010

Weight : 8.0kg

Contact Now

P2.6 stage lighting rental LED display 500*500mm LMS-CLF Series quick assembly


Description:

LMS-CLF Series Cabinet (carbon fiber frame structure, indoor&outdoor LED display, ratio 1:1) boasts quick assembly and front maintenance. fine-pitch CLF can effectively avoid the influence of moire lines. The combination of CLF and interactive systems brings users a perfect human-computer interaction experience. CLF have been used in many large-scale projects such as the Beijing Olympic Games and the stage of the CCTV Spring Festival Gala, etc.


Quick Detail:

· Carbon fiber structure

· LCD Visual monitoring

· Strong load-bearing capacity

· Multi-modular design

· Front maintenance design

· Quick assembly design

Specifications:

Parameter Item LMS-CLF2.6C-M2 LMS-CLF2.6CD-M2
Pixel Pitch (mm) 2.6 2.6
Pixel Density (pixels/sqm) 147,456 147,456
Module Resolution 96x48 96x48
Cabinet Resolution 192x192 192x192
Mask optional optional
Lamp Type SMD1010 SMD1010
Cabinet Size (mm) 500 x 500 x 80 500 x 500 x 80
Cabinet Weight (kg) 8 8.2
Brightness (cd/sqm) 500 500
Gray Scale (Bit) 14
Color Temp (k) 3000-9000
Control System Synchronous Control
Protection Level IP43
Intelligent Storage No
Frame Frequency (Hz) 50/60FPS
Refresh Rate(Hz) 1920/3840(Optional)
Working Voltage 100-240V AC, 50/60Hz
Power Consumption (W/ m²) Max:≤600,Ave:≤200 Max:≤600,Ave:≤200
Lifetime (hrs) 100000
Operating Temp (℃) -20～+40
Storage Temp (℃) -35～+60
Humidity Range(Rh) 10%~90%, Non-condensing
Pixel Correction Brightness And Color Correction
Remark: Above data is subject to change without previous notice

Details about the product:
Multi Modular P2.6 Stage Rental LED Display Screen Carbon Fiber StructureMulti Modular P2.6 Stage Rental LED Display Screen Carbon Fiber StructureMulti Modular P2.6 Stage Rental LED Display Screen Carbon Fiber StructureMulti Modular P2.6 Stage Rental LED Display Screen Carbon Fiber Structure

Multi Modular P2.6 Stage Rental LED Display Screen Carbon Fiber Structure

Applications:

Widely used in building exterior walls, shopping malls, outdoor advertising, etc.

Multi Modular P2.6 Stage Rental LED Display Screen Carbon Fiber StructureMulti Modular P2.6 Stage Rental LED Display Screen Carbon Fiber StructureMulti Modular P2.6 Stage Rental LED Display Screen Carbon Fiber StructureMulti Modular P2.6 Stage Rental LED Display Screen Carbon Fiber Structure
