P8 Outdoor LED Screen Module 320×360mm With Aluminum Structure

  • 1
  • 2

Brand Name : Lemass

Model Number : P8 Outdoor LED video wall screen panel

Certification : RoHS, FCC, CE, CNAS, BIS, SGS

Place of Origin : China

MOQ : 1 pc

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10KK pixels/month

Delivery Time : 7-15 days

Packaging Details : Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg

Name : P8 Outdoor LED video wall screen panel

Size : 320×360mm

Pixel Pitch : H:8mm V:7.826mm

Resolution : 40×46

features : Common cathode circuit

Brightness : 7500-8500cd/sqm

Lamp Type : SMD2727

Weight : 1.95±0.05

Contact Now

P8 Outdoor LED video wall screen panel 320*360mm MSE Plus Series light aluminum structure

Description:

Our outdoor LED screen has a much higher brightness than its indoor counterpart, in order to deliver bright and vibrant images even in direct sunlight, ideal for outdoor stadiums and events. Each of our outdoor LED screens is shipped in module format allowing you the flexibility to create screens of any size. Options are available for front or rear service access depending on your installation. Lemass outdoor LED screens are manufactured to strict quality standards, enduring a rigorous testing process before leaving our facility and coming complete with free spare parts and comprehensive warranty.

Quick Detail:

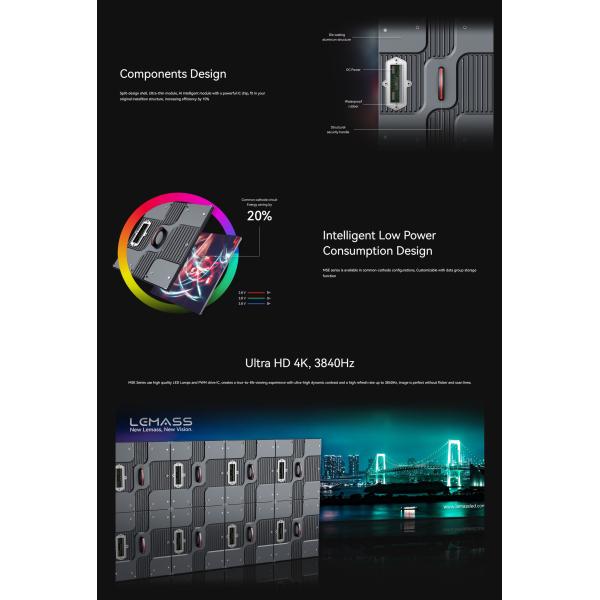

· Ultra-thin&light aluminum structure

· Low power consumption, efficient heat dissipation

· AI intelligent module

· Color gamut up to 130% DCI-P3

· Filter harmful blue light for eye protection

· Support 3D/HDR display

Specifications:

Parameter Item MSE8 Plus
Pixel Pitch (mm) H:8 V:7.826
Pixel Density (pixels/sqm) 15,972
Module Resolution 40×46
Mask Standard
Lamp Type SMD2727
Module Size (mm) 320×360×19
Module Weight (kg) 1.95±0.05
Brightness (cd/sqm) 7500/8500
Gray Scale (Bit) 12~16
Color Temp (k) 2500~10000
Control System Synchronous Control
Protection Level IP65
Intelligent Storage AI Intelligent Storage
Frame Frequency (Hz) 50/60FPS~120FPS (3D)
Refresh Rate(Hz) ≥3840
Working Voltage AC:100V~240V, 50/60Hz
Power Consumption (W/ m²) Max:≤570, Ave:≤190
Lifetime (hrs) 100,000
Operating Temp (℃) -10～+40
Storage Temp (℃) -25~+60
Humidity Range(Rh) 10%~80%, Non-condensing
Pixel Correction Brightness And Color Correction
Remark: Above data is subject to change without previous notice

Details about the product:

P8 Outdoor LED Screen Module 320×360mm With Aluminum Structure

Applications:

Widely used in shopping malls, exhibition halls, conference centers, etc.


P8 Outdoor LED Screen Module 320×360mm With Aluminum StructureP8 Outdoor LED Screen Module 320×360mm With Aluminum StructureP8 Outdoor LED Screen Module 320×360mm With Aluminum StructureP8 Outdoor LED Screen Module 320×360mm With Aluminum StructureP8 Outdoor LED Screen Module 320×360mm With Aluminum Structure
