Intelligent P5 Outdoor LED Display Cabinet Waterproof IP66 Energy Saving

Product Categories
Lemass Optoelectronic Co., Ltd.
Contact Now

Intelligent P5 Outdoor LED Display Cabinet Waterproof IP66 Energy Saving

  • 1
  • 2

Brand Name : Lemass

Model Number : P5 Outdoor LED Display Cabinet

Certification : RoHS, FCC, CE, CNAS, BIS, SGS

Place of Origin : China

MOQ : 1 pc

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10KK pixels/month

Delivery Time : 7-15 days

Packaging Details : Wooden case + Cabinet packing

Name : P5 Outdoor LED Display Cabinet

Size : 1280x720mm

Pixel Pitch : 5mm

Resolution : 256×144

features : 30% energy saving & IP66 waterproof

Brightness : 7500~8500cd/sqm

Lamp Type : SMD2727

Weight : 28±0.05kg

Contact Now

P5 Outdoor LED Display Cabinet 16:9 MA Outdoor Waterproof IP66 Energy Saving

Description:

MA Outdoor Series (common cathode circuit, ratio 16:9) adopts aluminum bottom shell structure design, light weight and easy installation, with IP66 waterproof and 30% energy saving, MA Outdoor Series has excellent weather resistance (can work in the environment of -20~50℃) equipped with AI intelligent chip and automatic readback of data, its brightness can reach ≥ 7500nits, widely used in outdoor advertising screens, building exterior walls, etc.

Quick Detail:

· Low power consumption

· Efficient heat dissipation

· AI storage function

· Ultra-high brightness

· Front and rear maintenance

· Color temperature adjustment

Specifications:

Parameter Item MA5S
Pixel Pitch (mm) 5
Pixel Density (pixels/sqm) 40,000
Module Resolution 64×72
Cabinet Resolution 256×144
Mask Standard
Lamp Type SMD2727
Module Size (mm) 320×360×19
Module Weight (kg) 1.95±0.05
Cabinet Size (mm) 1280x720x88.3
Cabinet Weight (kg) 28±0.05
Brightness (cd/sqm) 7500/8500
Gray Scale (Bit) 12~16
Color Temp (k) 3000~15000
Control System Synchronous Control
Protection Level IP65
Intelligent Storage AI Intelligent Storage
Frame Frequency (Hz) 50/60FPS~120FPS (3D)
Refresh Rate(Hz) ≥3840
Working Voltage AC:100V~240V, 50/60Hz
Power Consumption (W/ m²) Max:≤570,Ave:≤190
Lifetime (hrs) 100,000
Operating Temp (℃) -20～+40
Storage Temp (℃) -20~+60
Humidity Range(Rh) 10%~80%, Non-condensing
Pixel Correction Brightness And Color Correction
Remark: Above data is subject to change without previous notice

Details about the product:

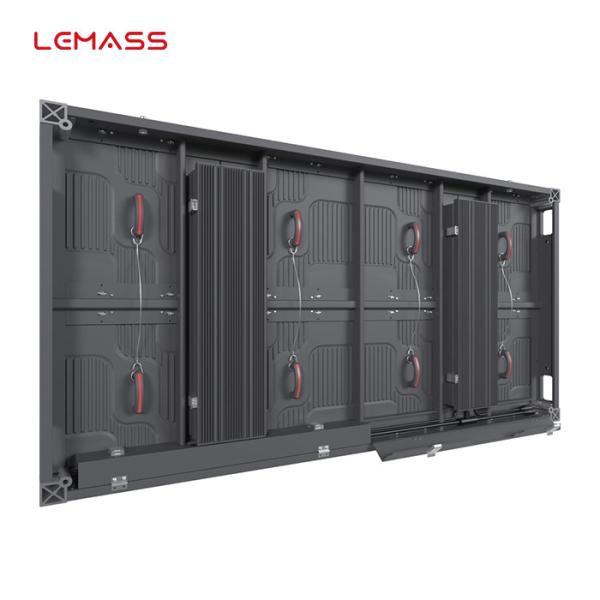

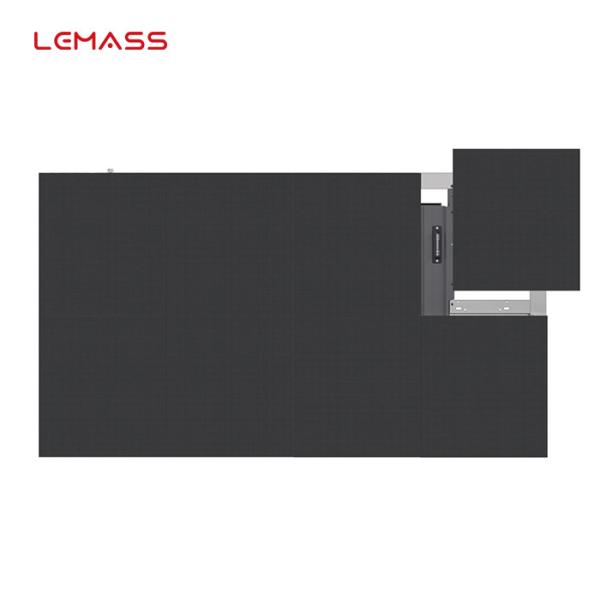

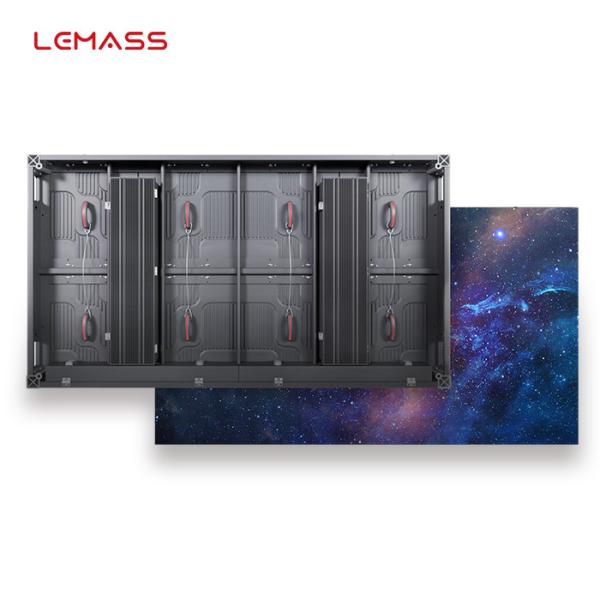

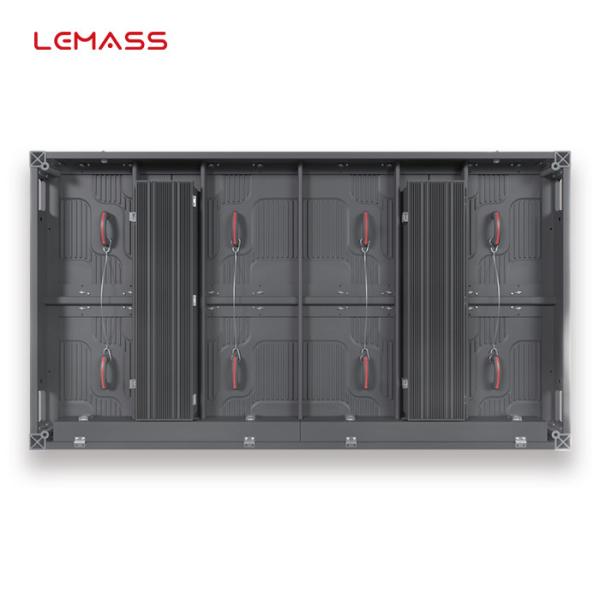

Intelligent P5 Outdoor LED Display Cabinet Waterproof IP66 Energy Saving

Intelligent P5 Outdoor LED Display Cabinet Waterproof IP66 Energy Saving

Intelligent P5 Outdoor LED Display Cabinet Waterproof IP66 Energy Saving

Intelligent P5 Outdoor LED Display Cabinet Waterproof IP66 Energy Saving

Intelligent P5 Outdoor LED Display Cabinet Waterproof IP66 Energy Saving

Applications:

Widely used in outdoor advertising screens, building exterior walls, etc.

Intelligent P5 Outdoor LED Display Cabinet Waterproof IP66 Energy SavingIntelligent P5 Outdoor LED Display Cabinet Waterproof IP66 Energy SavingIntelligent P5 Outdoor LED Display Cabinet Waterproof IP66 Energy SavingIntelligent P5 Outdoor LED Display Cabinet Waterproof IP66 Energy Saving
